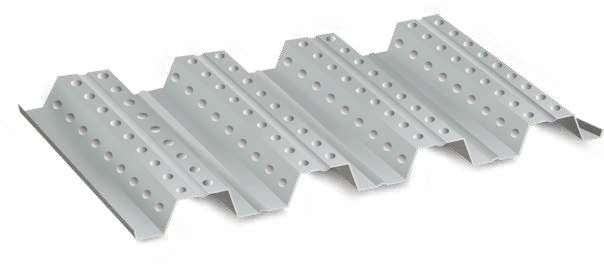

FLOOR DECK SHEETS
Features of Decking Sheets
Light Weight, Durable & Reliable, Sturdy Construction, Low Maintenance, Constructed using high grade raw materials & Easy installation. Bare, Primer Coated, Galvanised, Pre-painted Thickness available 0.60mm - 2mm
Bare, Primer Coated, Galvanised, Pre-painted :Thickness available 0.60mm - 2mm

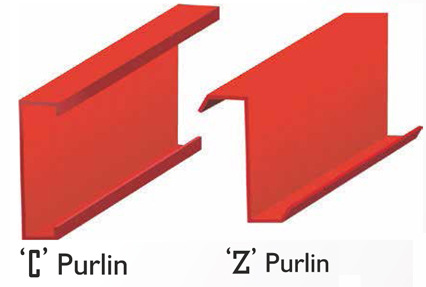

Z and C PURLINS
Material Specifications
IS 513 / IS 277 / IS10748/IS 1079/G240 MPA / G340 MPA / G550 MPA, Z 120 GSM/ Z 275 GSM & Z 180 GSM. G indicates yield strength in MPA & Z indicates coating mass in G/M2 Finish: Mill Finish / Red Oxide Primer / Pre Galvanized
Thickness:1.5mm to 3.5mm
FOAM CLOSURE (CLOSED CELL NEOPRENE STRIP)
Features
- Sturdiness
- Negligible Maintenance
- Superior Finish
- High Durability

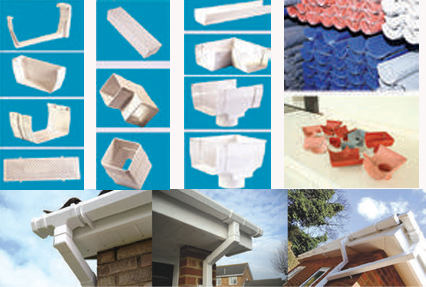

PVC RAIN WATER GUTTER
Features
PVC rain gutters collect and gravity extract rainwater from typical hillside roofs. PVC rain gutters are constructed with crush and dent resistant vinyl to withstand extreme temperatures. This durable downspout is maintenance-free and contains UV stabilizers to help prevent UV degradation.
BUTYL TAPE
Character & Features
Light Flexible & Easy to use.
Outstanding durability, UV Resistance & Excellent adhesian without solvent for environmental protection. Color: White, Grey & Black
Color: White, Grey & Black
| Stud Dia (D1) | Stud Dia (D2) | Length (L) |
|---|---|---|
| 16 | 32 | 50/75/100/125 |
| 19 | 22 | 75/100/125/135 75/100/125/135 |
| 25 | 40 | 75/100/125/135 |
SHEAR CONNECTORS
Features
Easy to use, Economical, Very fast installation as compared to conventional process,
Minimum human intervention

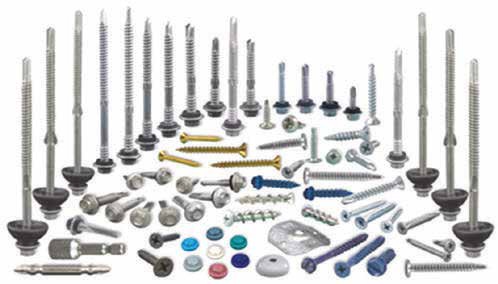

FASTENERS & FIXINGS
| Self Drilling Screw Sizes | ||
|---|---|---|
| 10 X 20 | 12 X 45 | 12 X90 |
| 10 X 25 | 12 X 55 | 12 X 100 |
| 12 X 25 | 12 X 68 | 12 X 110 |
| 12 X 35 | 12 X 75 | 12 X 120 |
COLOUR COATED STEEL ROOFING SHEETS

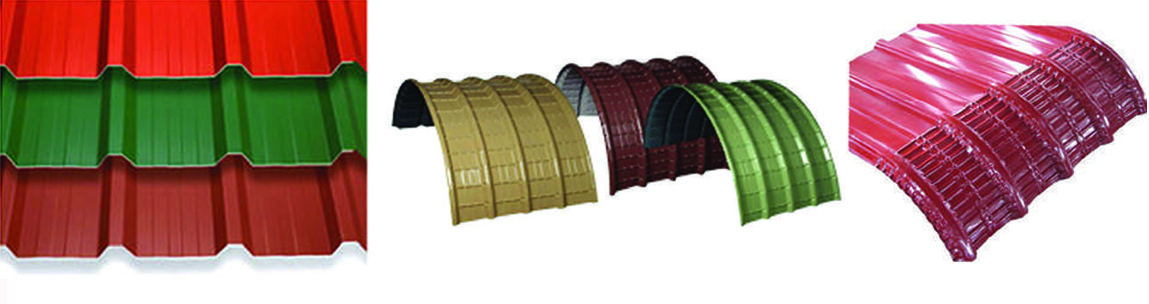

Trapezoidal Profile

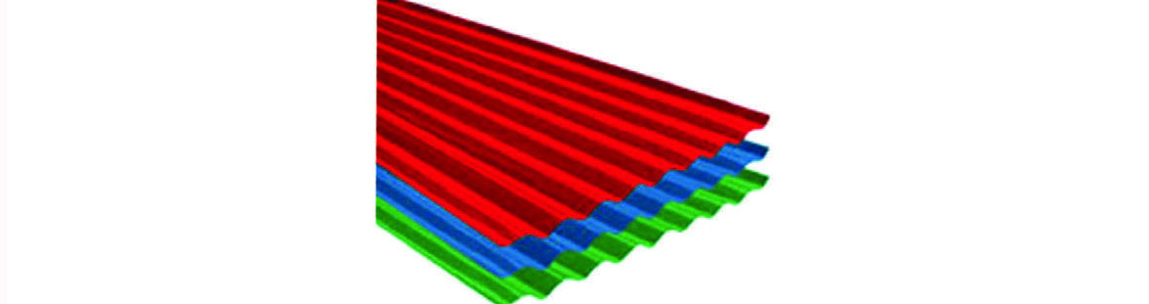

Corrugation

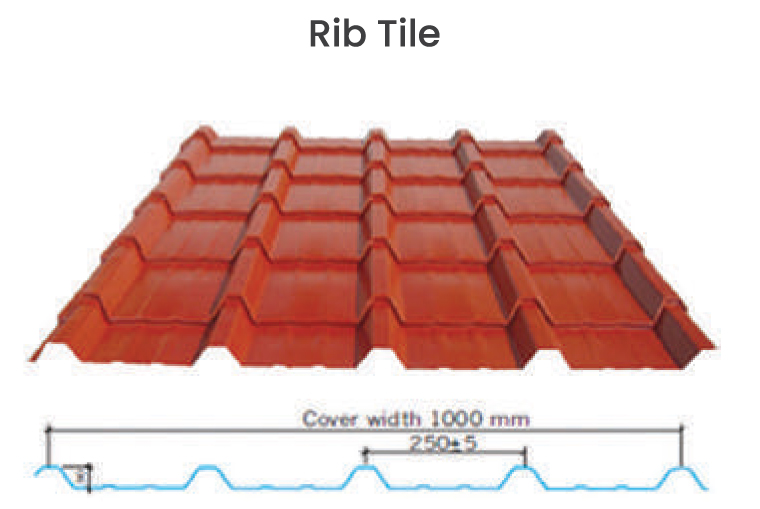

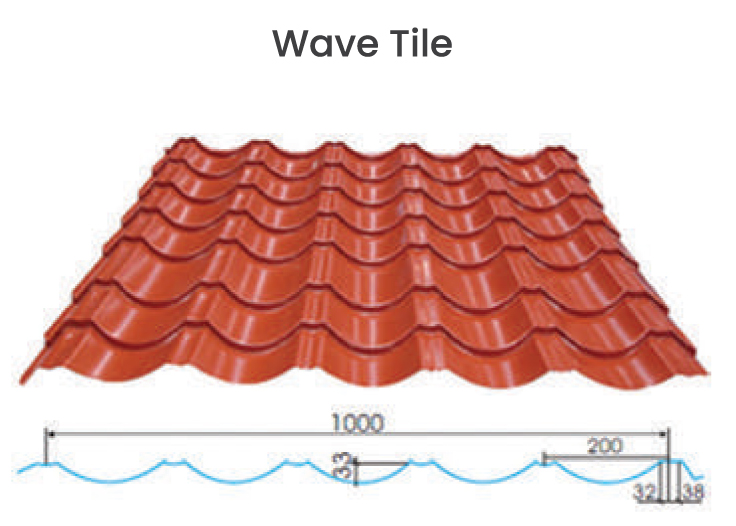

Tile Profile
| Pre-painted Galvanized Steel | ||
|---|---|---|
| Thickness (TCT) Metallic Coating |
0.30mm - 0.80mm Z 120 (Total on both sides) Higher or lower coating optional. |
|
| Tensile Strength Paint Coating Paint Thickness |
340-550 MPA RMP/SMP/PVDF 18-22 micron on top & 5-8 micron primer on bottom. |
|
| Thickness Tolerance Standard Followed | As per ISI IS 277, ASTM A 653 AS 1397 JISG3312 | |

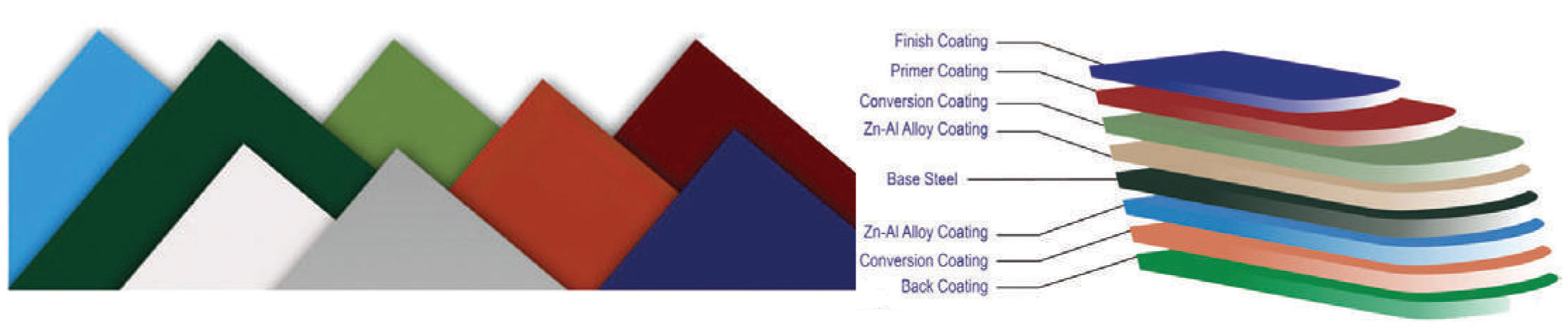

| Pre-painted Galvalume / Bare Galvalume Steel | ||
|---|---|---|
| Thickness (TCT) Metallic Coating |
0.30mm - 0.80mm Zinc-Aluminium Alloy Coating AZ150 Higher or lower coating optional. |
|
| Tensile Strength Paint Coating Paint Thickness |
340-550 MPA RMP/SMP/PVDF 18-22 micron on top & 5-8 micron primer on bottom. |
|
| Thickness Tolerance Standard Followed | As per ISI IS 277, ASTM A 653 AS 1397 JISG3312 55% Al, 43.4% Zn &1.5 - 1.6% Si. | |
ALUMINIUM ROOFING SHEETS
Features
- Long Life
- No maintenance
- 100% Rust-proof
- Better Thermal Insulation
- High Resale Value
- A Variety Of Colours And Finishes

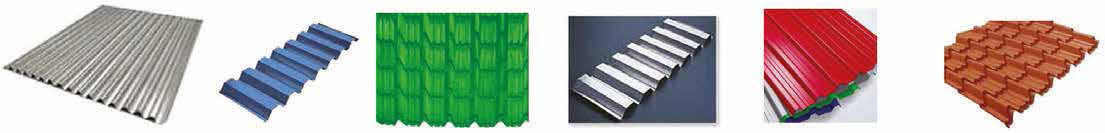

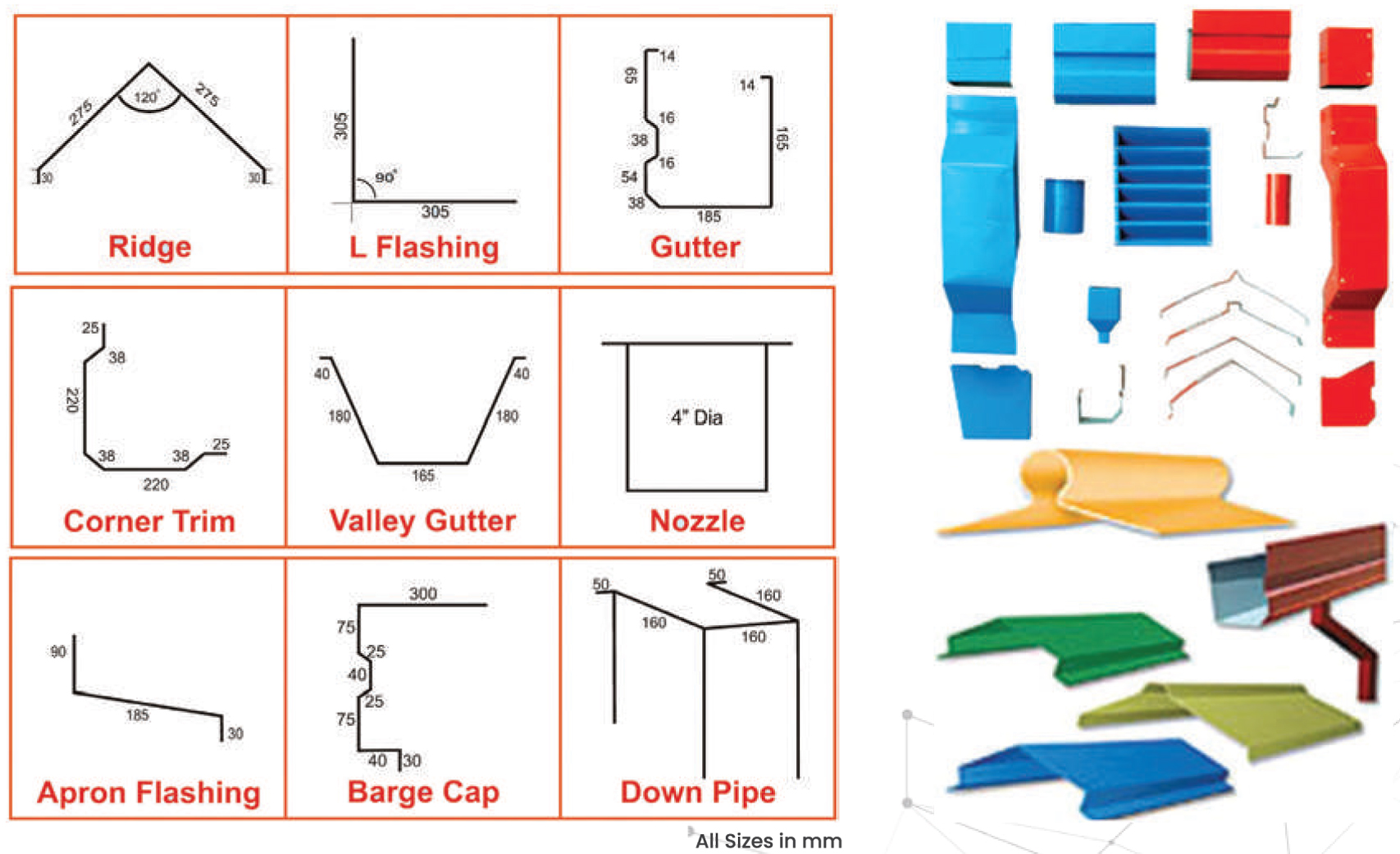

METAL ROOFING SHEETS

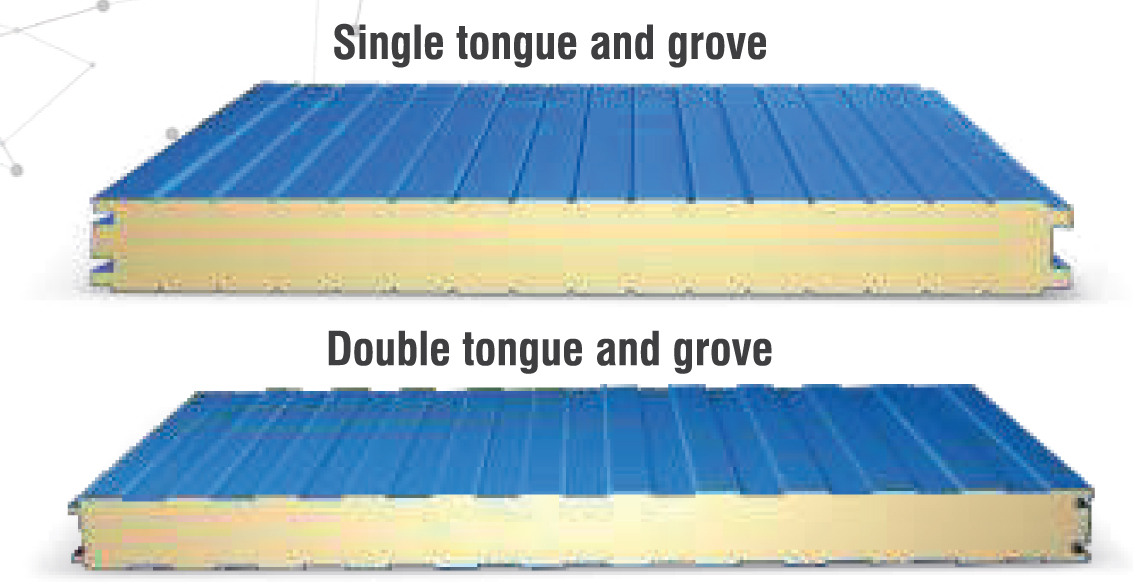

CLEAN/COLD ROOM WALL & CEILING PANELS

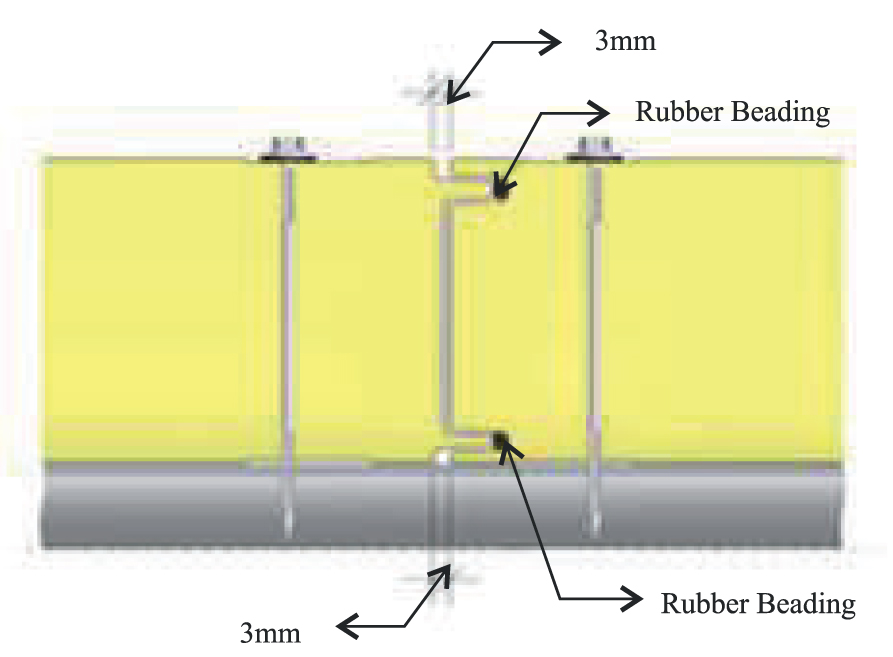

Cold Storage Wall Panels

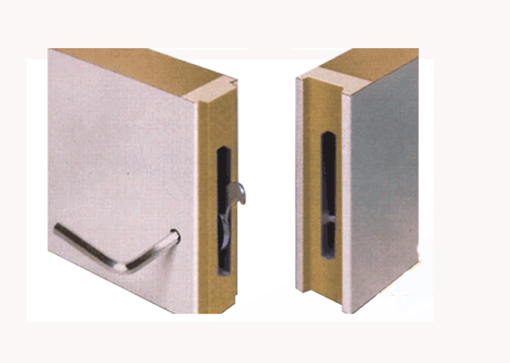

Camlock Panels
PUF Slabs
